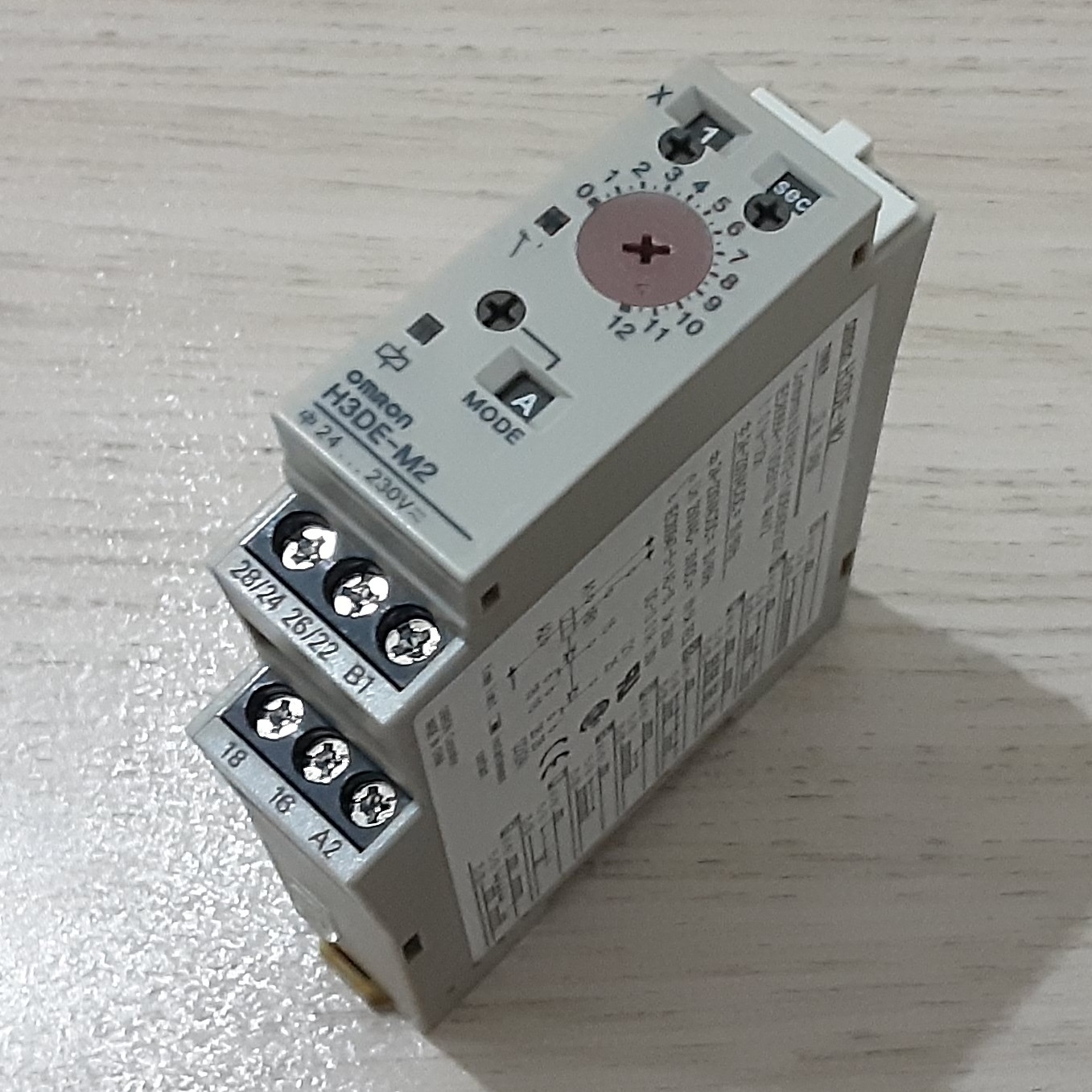

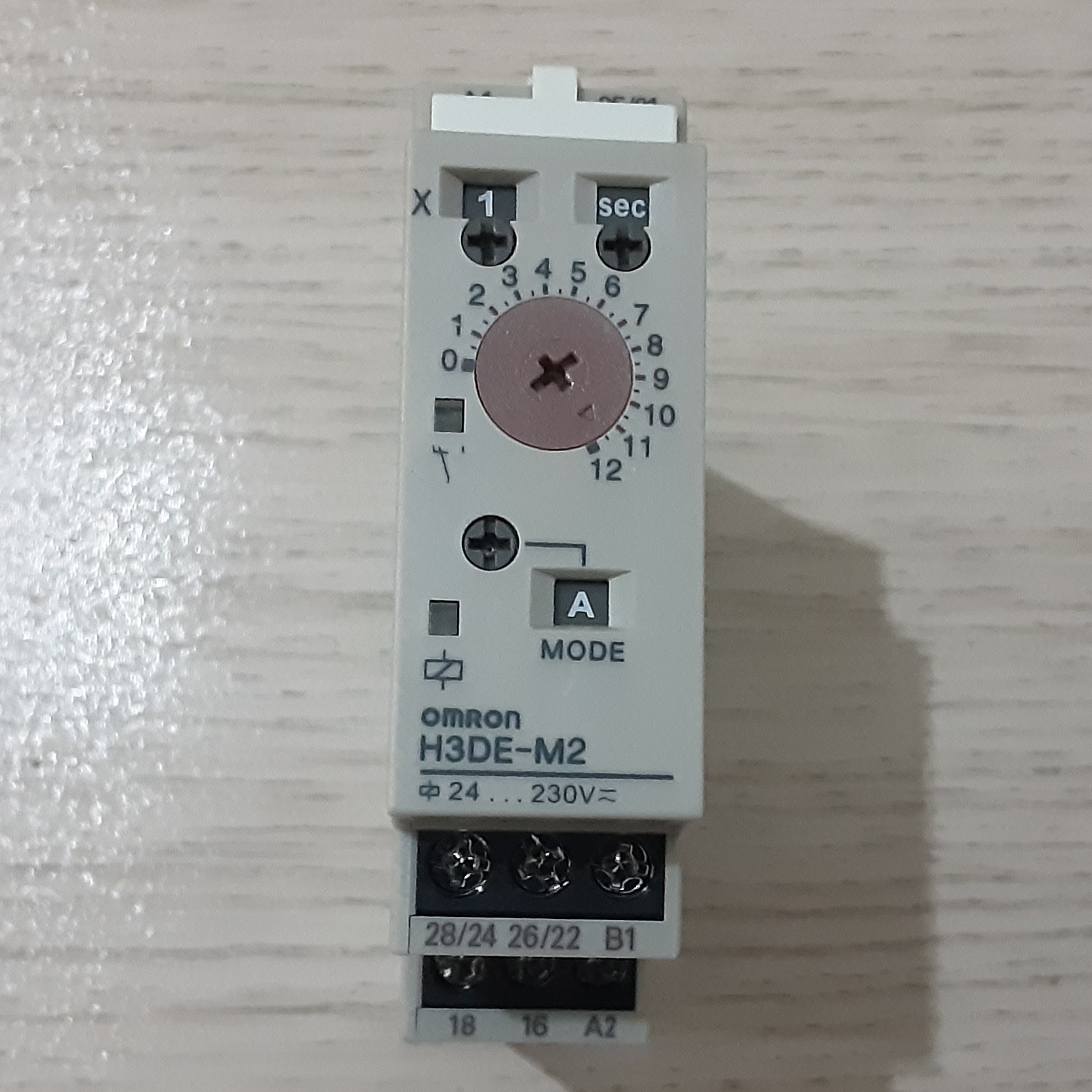

تایمر کتابی مولتی رنج امرون omron H3DE-M2

Description Manufacturer: OMRON Type: Multifunction Timer Model: H3DE-M2 Rated Supply Voltage: 24 … 230 V AC/DC Frequency: 50/60 Hz Terminal Block: Clamps two 2.5 mm2 max. bar terminals without sleeves Terminal Screw Tightening Torque: 0.98 N.m max. Input Type: Voltage input Output Type Relay: DPDT Mounting Method: DIN track mounting Attachment: Nameplate Time Range: 0.1 s … 120 hrs Enclosure Rating / Terminal block: IP30 / IP20 Dimensions: 22.5 X 100 X 77 mm
