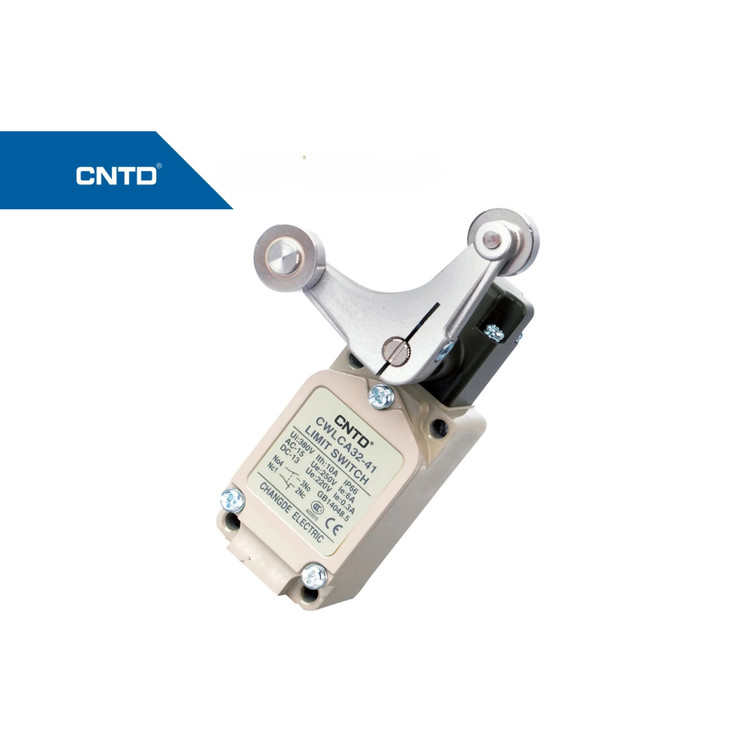

لیمیت سوییچ دو شاخه تیپ سنگین طرح امرن CNTD CWLCA32-41

مشخصات فنی Operation speed | 1mm-1m/s ---|--- Operating frequency | Electical: 30 operations/min Contact resistance | 25mΩ max. (initial value） Insulation resistance | 100mΩ min. （below 500VDC） Dielectric strength | 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground Vibration | 10-55Hz,1.5mm double amplitude Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about30G'S) Ambient temperature | Using：-20~+80℃（With no icing） Humidity | <95% RH Electrical life | 500,000 operations above Protection level | IP66 contact | 1NO+1NC :جریان نامی Rated Voltage | Noninductive Load (A) | Inductive Load (A) ---|---|--- Resistance Load | Lamp Load | Inductive Load | Motor Load NC | NO | NC | NO | NC | NO | NC | NO 125VAC | 10 | 3 | 1.5 | 10 | 5 | 2.0 250VAC | 5 | 2 | 1 | 5 | 3 | 1.0 480VAC | 3 | 1.5 | 0.8 | 3 | 1.5 | 0.8 600VAC | 1 | 1 | 0.5 | 1.5 | 1 | 0.5 8VDC | 10 | 6 | 3 | 10 | 6 14VDC | 10 | 6 | 3 | 10 | 6 30VDC | 6 | 4 | 3 | 6 | 4 125VDC | 0.8 | 0.2 | 0.2 | 0.8 | 0.2 250VDC | 0.4 | 0.1 | 0.1 | 0.4 | 0.1
