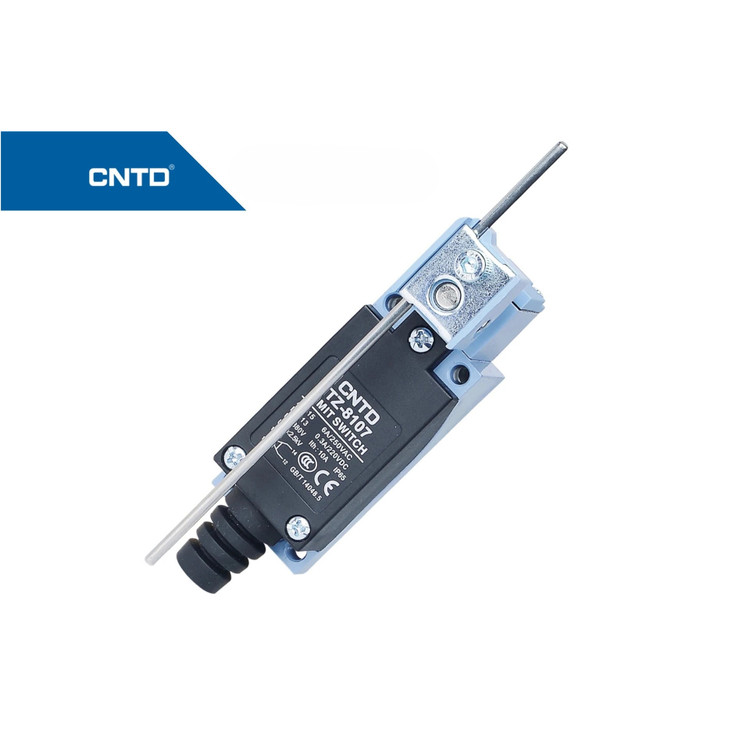

لیمیت سوییچ میله ای رگلاژی CNTD TZ8107

## ویژگی‌های لیمیت سوییچ TZ-8107 مشخصات فنی Operation speed | 5mm-0.5m/s ---|--- Operating frequency | Electical: 30 operations/min Contact resistance | 25mΩ max. (initial value） Insulation resistance | 100mΩ min. （below 500VDC） Dielectric strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts 1500VAC, 50/60 Hz for 1 minute between each terminal and ground Vibration | 10-55Hz,1.5mm double amplitude Shock | Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S) Ambient temperature | Using：-20~+70℃（With no icing） Humidity | <95% RH Electrical life | 500,000 operations above Degree of protection | IP65 Contact | 1NO+1NC جریان نامی: Rated Voltage | Noninductive Load (A) | Inductive Load (A) ---|---|--- Resistance Load | Lamp Load | Inductive Load | Motor Load
