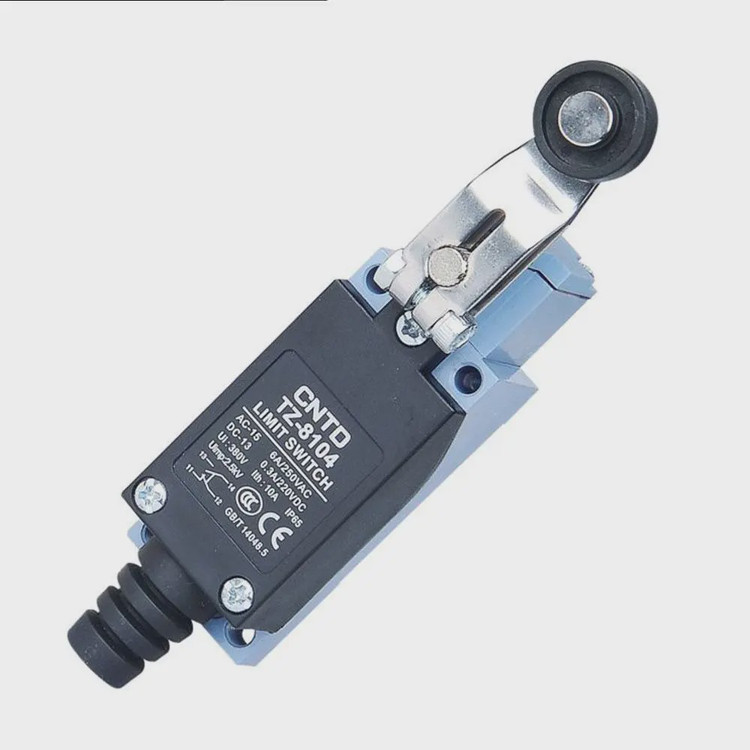

لیمیت سوییچ دوطرفه قرقره دار CNTD TZ8104

جریان نامی: Rated Voltage | Noninductive Load (A) | Inductive Load (A) ---|---|--- Resistance Load | Lamp Load | Inductive Load | Motor Load NC | NO | NC | NO | NC | NO | NC | NO 125VAC 250VAC | 5 5 | 5 5 | 1.5 1 | 0.7 0.5 | 3 3 | 3 3 | 2 1.5 | 1 0.8 8VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 14VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 30VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 125VDC | 0.4 | 0.4 | | | | | | 250VDC | 0.2 | 0.2 Inrush Current | N C: below 24A, N O: below 12A
